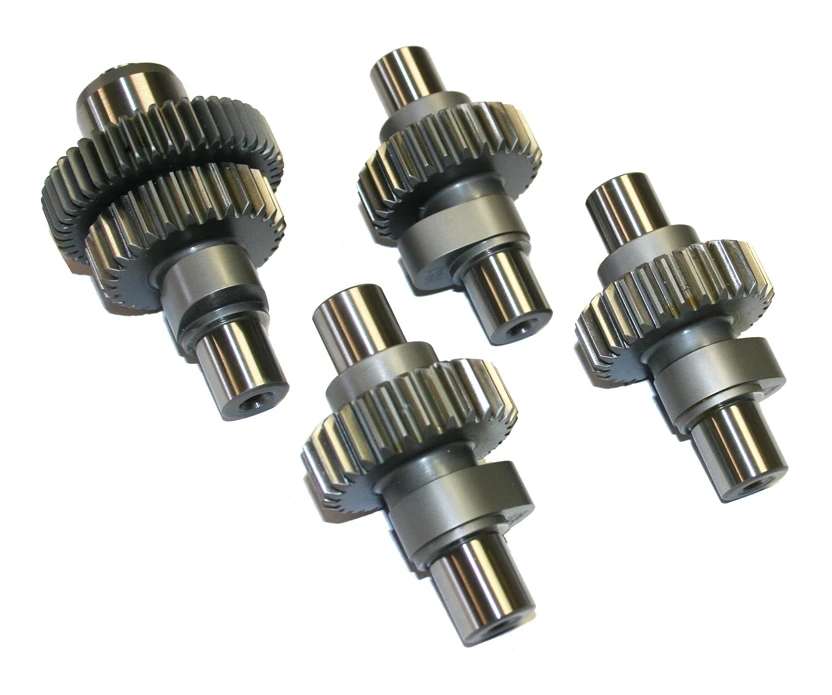

Feuling Reaper Camshafts For Harley Sportster 2000-2022

Feuling Reaper Camshafts For Harley Sportster

The Reaper® cams produced by Feuling® are a great choice for your Harley Sportster. Produce a powerband and top fuel sound.

Cam Info:

• 505/515 Cams are a bolt-in cam producing a wide power band in stock engines. A great way to take your Sportster to a hot new level of performance. Split lift camshaft with .505 lift on the intake and .515 lift on the exhaust produce a solid power band with top fuel sound. Can be used with stock pushrods and valve-springs, Feuling® recommends matching new camshafts with new lifters but not required.

• 580 Cams are high lift cams that are designed for the rider who is looking for more horsepower with a higher RPM power band. Camshafts have .580 lift on both intake and exhaust, require high lift valve springs. Higher compression recommended with performance pushrods and lifters. High flow intake and performance exhaust required.

Cam Specs:

• 505/515 Cams
  • Intake open/close 11°/48°
  • Exhaust open/close 53°/15°
  • Intake duration 239°
  • Exhaust duration 248°
  • Intake lift at TDC .084″
  • Exhaust lift at TDC .092″
  • Intake lobe centerline 108.5°
  • Exhaust lobe centerline 109°
  • Intake lift .505″
  • Exhaust lift .515″
• 580 Cams
  • Intake open/close 21°/57°
  • Exhaust open/close 67°/21°
  • Intake duration 258°
  • Exhaust duration 268°
  • Intake lift at TDC .195″
  • Exhaust lift at TDC .180″
  • Intake lobe centerline 108°
  • Exhaust lobe centerline 113°
  • Intake lift .580″
  • Exhaust lift .580″

Note: Most cam compartments require machine work to make clearance for 580 high lift cams.
